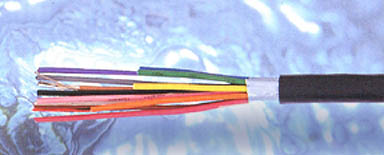

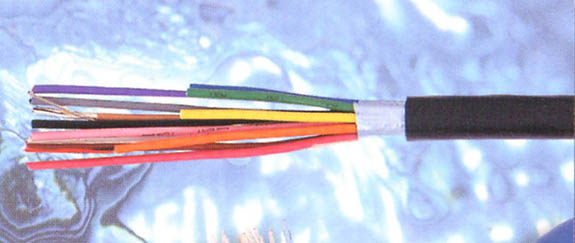

CM Rated 24 Gage
|
|
individually shielded and jacket
|
|
| |
|
Insulation Construction
|
Trade
NO |
NO
Pairs |
Outer
Jacket
Thickness
mm |
Nominal
O.D
Mm |
Tinned copper 7/0.203
Polyolefin insulated ID:1.02mm.
Pairs color coded Red & Black.
Each pair individually shielded
with aluminum-polyester shield.
Overall paper tape wrap.
Overall black matte PVC jacket
with nylon ripcord.
Nom.D.C.R.:92.13Ω
KM
Nom.Capacitance:102 PF/M |
S02402A |
2 |
1.20 |
8.04 |
| S02404A |
4 |
1.30 |
9.52 |
| S02406A |
6 |
1.50 |
11.50 |
| S02408A |
8 |
1.50 |
12.71 |
| S02412A |
12 |
1.50 |
15.26 |
| S02416A |
16 |
1.50 |
16.90 |
| S02420A |
20 |
2.03 |
18.89 |
| S02424A |
24 |
2.03 |
20.60 |
| S02426A |
26 |
2.03 |
21.00 |
| S02428A |
28 |
2.03 |
21.60 |
| S02432A |
32 |
2.29 |
22.60 |
| S02436A |
36 |
2.29 |
24.06 |
| S02448A |
48 |
2.54 |
27.20 |
| S02452A |
52 |
2.54 |
27.80 |
| S02456A |
56 |
2.54 |
28.60 |
|
| |
|
| |
|
